Micro-Reed Relay

Magnetic field causes nickel beam to respond by opening or closing.

PI cantilever displacement & stress

0.040" beam.

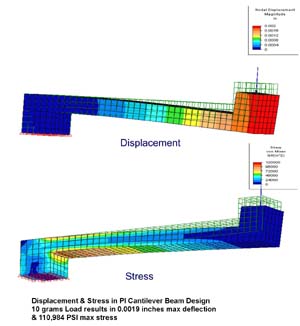

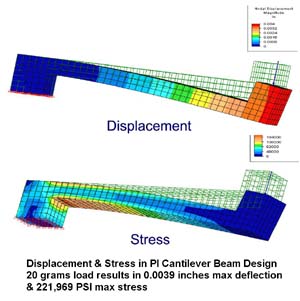

10 grams load.	20 grams load.

Number of operations corresponds to contact life of socket insertions. Graph suggests 1.5 million operations.
